Service Depth - - - - - - - - - - 12,000'
Workover Depth - - - - - - - - - 8,000'

Carrier - - - - - 4 Axles
High Tensile Alloy Wide Flanged Beam
Front Axle: 20,000# Capacity
Suspension: Spring
Rear Axle: 46,000# Tandem
Suspension: Walking Beam
Front Tires: 385/65R22.5
Rear Tires: 11R22.5

Power Train
Engine – MTU S1300 T4
      or   – FPT Cursor 13
Transmission – 4500 OFS Allison

Main Drum
Brakes: 42" diameter x 10" wide
Water spray brake cooling
48" Air Cooled Disc Assist
Barrel: 16" diameter x 38.75" wide
Chain: Single 140 Clutch: 224
Shaft: 5.95" Lebus Grooving: 1"

Sand Drum
Brakes: 38" diameter x 8" wide
Water spray brake cooling
Barrel: 12.75" diameter x 41" wide
Chain: Single 140 Clutch: 124
Shaft: 4.75"
Capacity: 12,500'- 9/16" or 10,000' - 5/8"

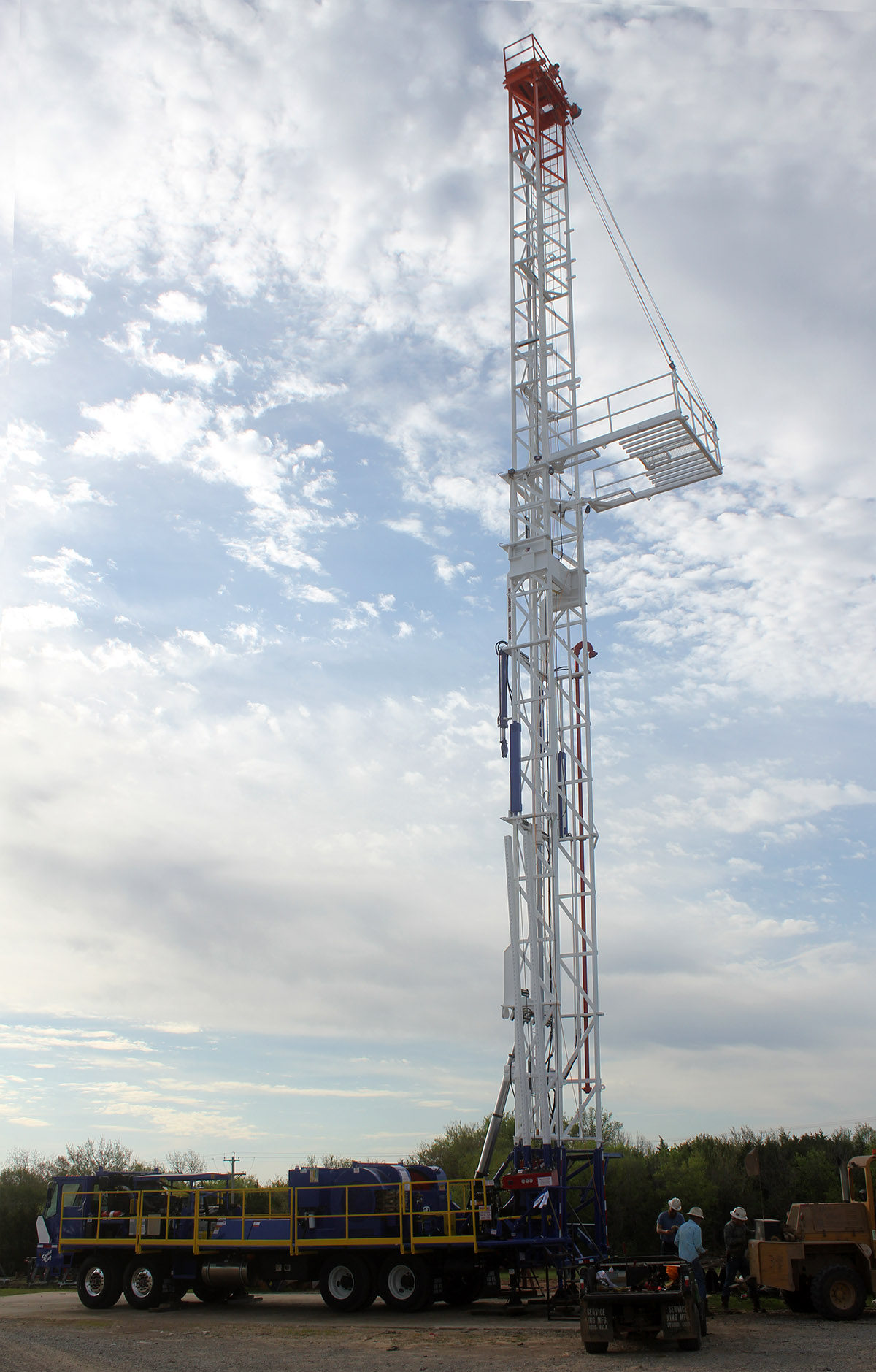

96’ MAST
Clear Height 96’
Maximum Static Load:
180,000# Capacity /w 4 lines

Tubing Board Capacity:
47,000# Pipe Setback Load

Rod Board Capacity:
21,520# Static Rod Load

 Also available with our

 96’ MAST
Clear Height 96’
Maximum Static Load:
210,000# Capacity /w 6 lines

Tubing Board Capacity:
56,400# Pipe Setback Load

Rod Board Capacity:
25,824# Static Rod Load
