Drilling Depth - 12,000' – 3 1/2” Drill Pipe

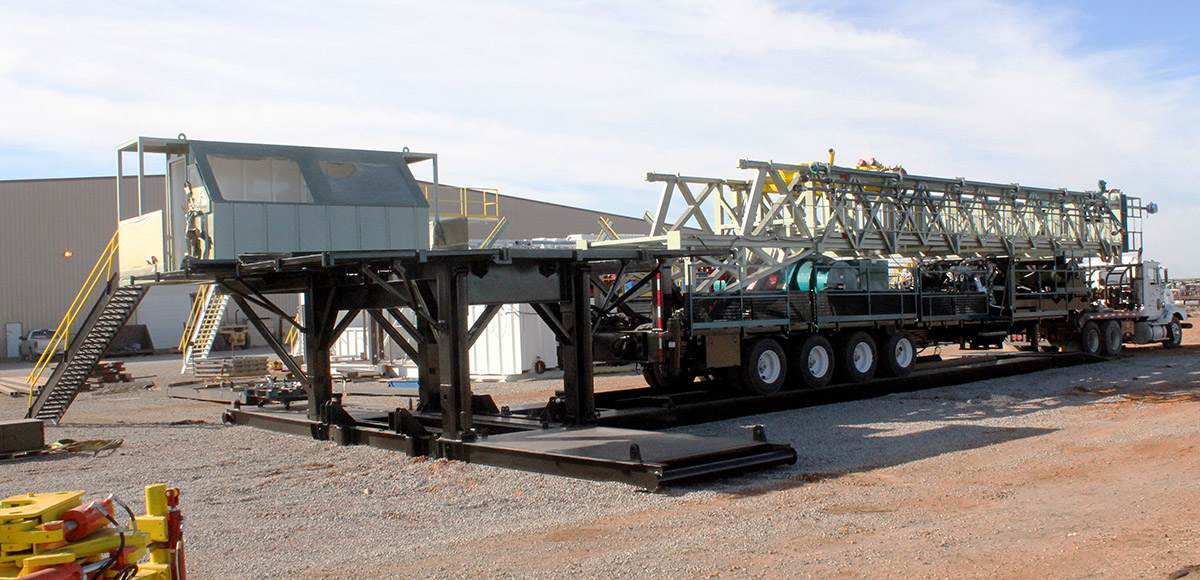

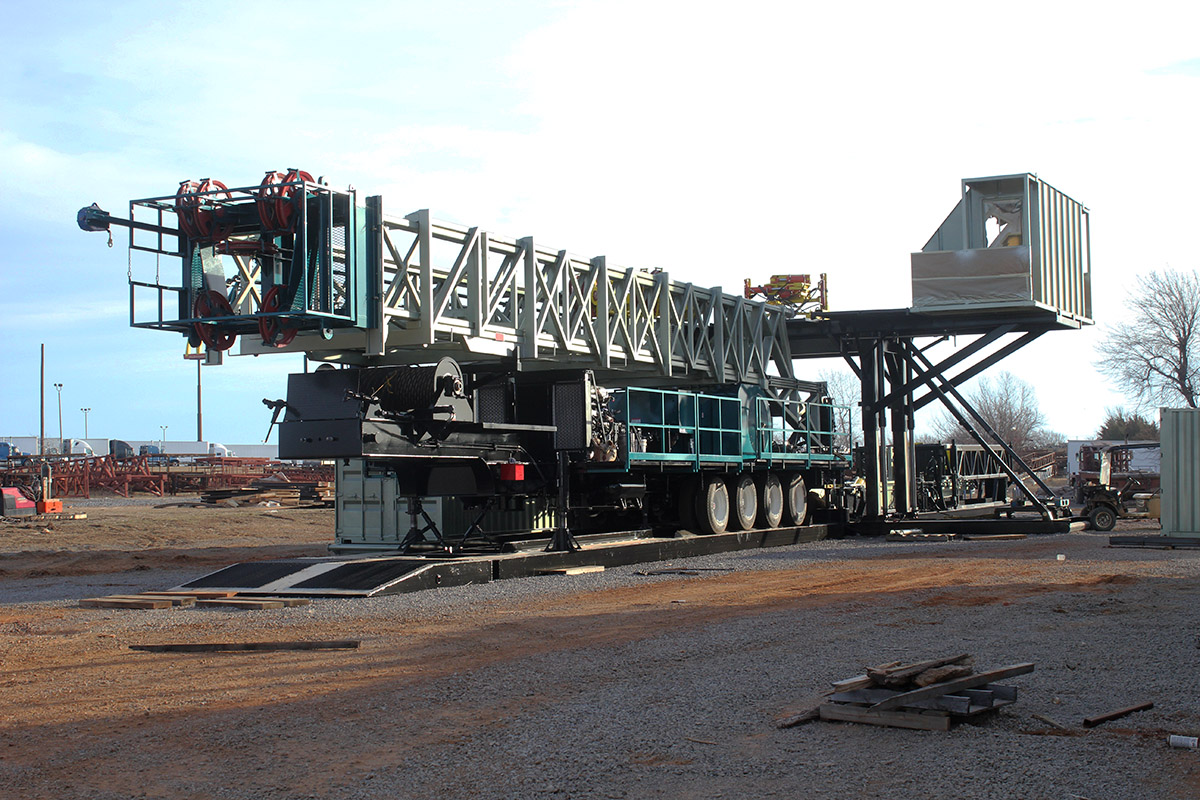

Carrier - - - - - 7 Axles
High Tensile Alloy Wide Flanged Beam
Front Axle: 20,000# Capacity
Suspension: Spring
Rear Axle: 46,000# Tandem
Suspension: Walking Beam
Front Tires: 425/65R22.5
Rear Tires: 11R22.5
or
4 Axle Trailer
High Tensile Alloy Wide Flanged Beam
Rear Axles: 75,000# Tridem Walking Beam Suspension
Push Axle: 25,000#
Tires: 11R22.5

Power Train
Engine – MTU S1300 T4
      or   – FPT Cursor 13
Transmission – 4500 OFS Allison

Main Drum
Brakes: 46" diameter x 10" wide Water Circulating
52“ or 54” Water Circulating Disc Assist w/ Double Calipers
Barrel: 22" diameter x 40" wide
Chain: Double 160 Clutch: 330
Shaft: 7.25" Lebus Grooving: 1 1/8"

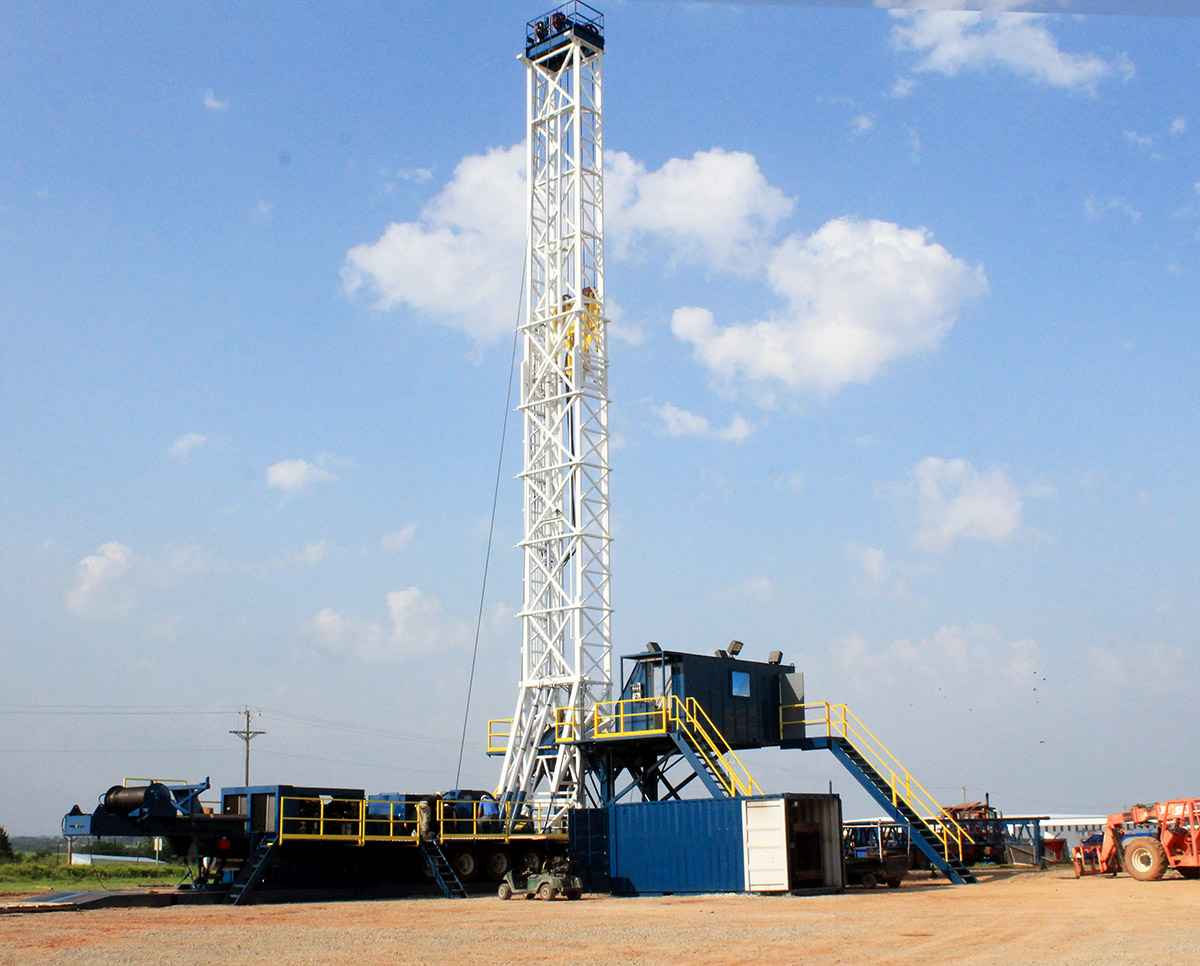

92’ MAST
Clear Height 92’
Maximum Static Load:
500,000# Capacity w/ 8 lines
